VV Valve

Description

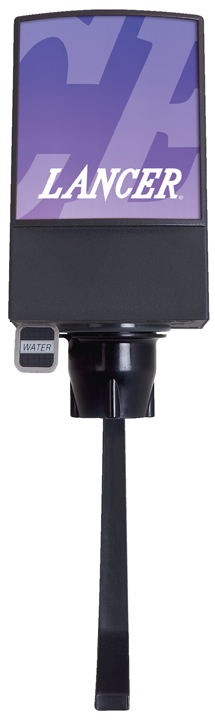

The Volumetric Valve is built with the highest quality materials and advanced technology providing our customers with consistent drink quality.

Volumetric Valves - four styles to choose from: self-serve lever, push button, portion control, and Easy Fill.

$ 0.00

	Over 500,000 Lancer Volumetric Valves in the market
	Consistent “Best in Class” performance
	Lancer Volumetric Valves using volumetric metering give accurate ratio over life of valve
	Once set, no adjustment
	A Lancer valve designed for Coca-Cola® to be the benchmark for other valves
	Mounting block has the same mounting screw hole pattern as Dole SEV, FFV, Cornelius SF1, McCann Turbo Flo Jr.

HEIGHT	Self Serve: 9.4" (238 mm)
	Push Button and Portion Control: 5.28" (134 mm)
	Crew Serve: 8.2" (208 mm)
WIDTH	2.53" (64 mm)
DEPTH	5.48" (139 mm)
Electrical	24V, 50/60 Hz
Water	Water: 40 - 110 psig (2.8 - 7.7 bar)
	Syrup (Sugar): 20 - 70 psig (1.4 - 4.9 bar)
	Syrup (Diet/Light): 10 - 70 psig (0.7 - 4.9 bar)
Valve type	Volumetric
Draw Performance	Grey flow washer assembly: 3.0 oz/s (90 ml/s)
	White flow washer assembly: 2.3 oz/s (68 ml/s)
	Red flow washer assembly: 1.5 oz/s (45 ml/s)
Options	Programmer, Flow Controls, Syrup Separator Nozzle, Water Button, Bare Valve
Certifications	ISO 9001, ISO 14001, SK, NSF Model 150
